Production
A state-of-the-art machine park
At Tolanjou, we have a state-of-the-art machine park, guaranteeing optimal performance for all our fine sheet metal operations.
Our modern equipment allows us to carry out precise and efficient production, meeting the strictest requirements of our customers.

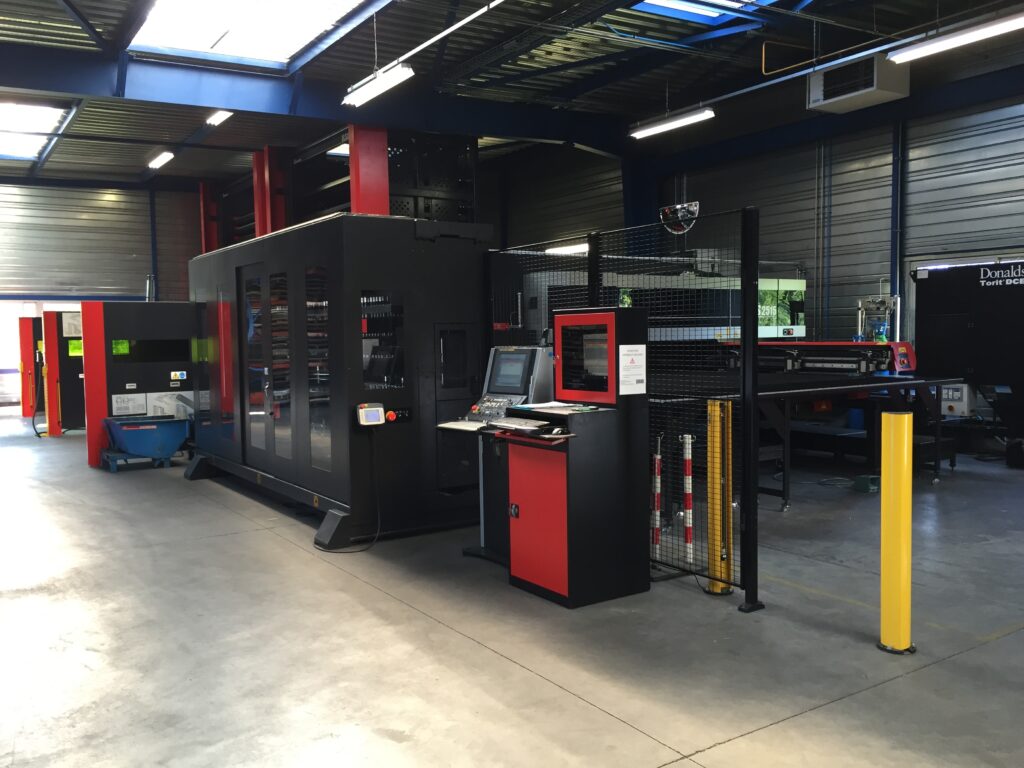

COMBINED Laser Cutting Punching
Tolanjou was able to acquire the ACIES 2515, which was the first in Europe in this configuration.
Additionally, the machine’s innovative sheet metal handling system and automated material loading/unloading capabilities improve workflow automation and maximize productivity.
The innovative ACIES 2515 combines the capabilities of traditional punching and laser cutting technologies, providing versatile manufacturing capabilities for a wide range of applications.
It incorporates AMADA’s own Automatic Tool Change (ATC) system, enabling quick and seamless tool changes to meet different punching and cutting requirements. Dimensions (L x W x H): 7975 x 5970 x 2666 mm
It has:
- Tool magazine with 300 punches and 600 dies entirely managed by QR Code.
- Automatic tool measurements + data transfer (= security).
- Automatic tool changer.
- A raw material storage tower (10 3-ton drawers) as well as a finished parts storage tower.
- The possibility of forming parts from above and below as well as tapping M2.5 to M6.

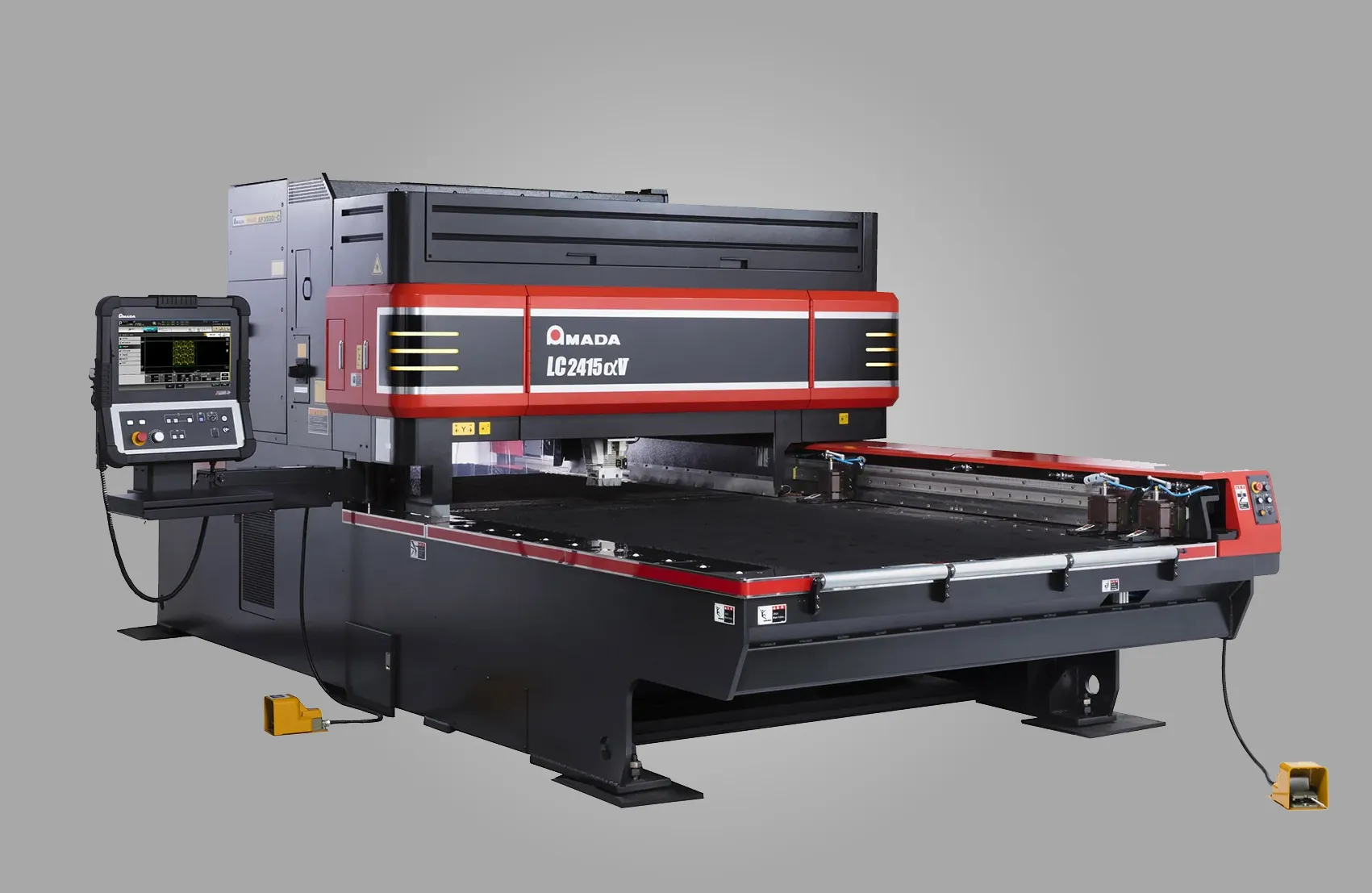

LASER CUTTING LC 2415 ALPHA V NT 4KW
This CO2 laser cutting center has a power of 4000W.
With a maximum format of 4000 x 1500 mm, we can cut maximum thicknesses of 12mm for steel, 10mm for stainless steel and 8mm for aluminum.
Press brake
- Bending force: 1000 kN.
- ATC/Number of punch locations: 15.
- ATC/Number of matrix slots: 18.
- Automated loading and unloading of bending tools.
Robot
- Robot: 6 axes + 1 linear axis.
- Payload: 20 kg.
- Max part dimensions: 1000×800 mm.
- Parts thickness: 0.5-6.0 mm.
- Unloading/Unloading Method: Horizontal or Vertical Conveyor belt.

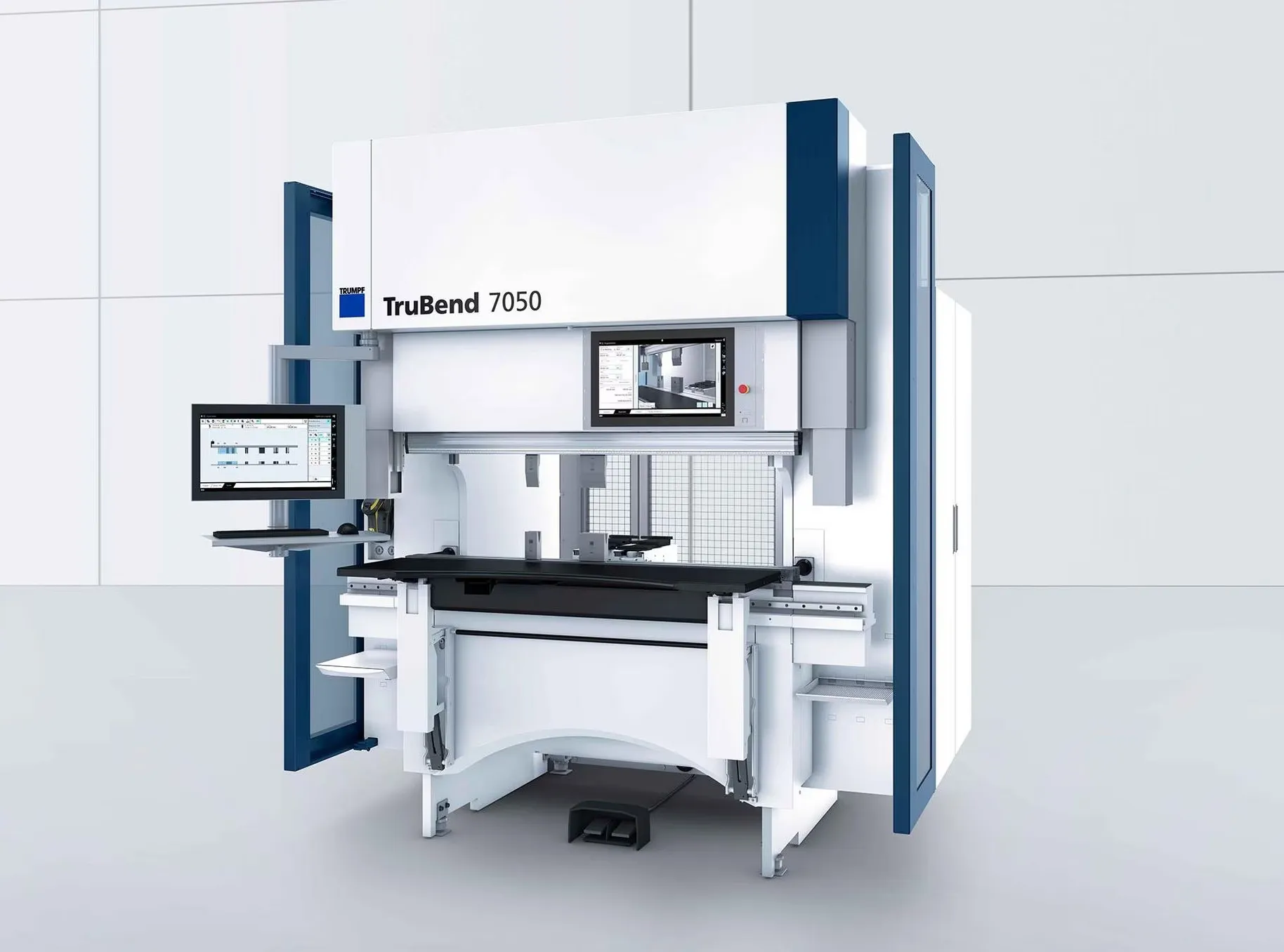

TRUMPF TRUBEND 7050 electric folder
- Compression force: 500 kN.
- Folding length: 1530 mm.
- Free passage between uprights: 1305 mm.
- Useful overall height: 385 mm.
- Laser angle measurer.
- Touchpoint TruBend user interface.
- Ergonomic machine.
AMADA HD 1003 NT ATC folding machine
- Power: 100 Tons.
- Length: 3000 mm.
- ATC magazine Number of punch racks: 15 Number of die racks: 18.
- Automated loading and unloading of bending tools.

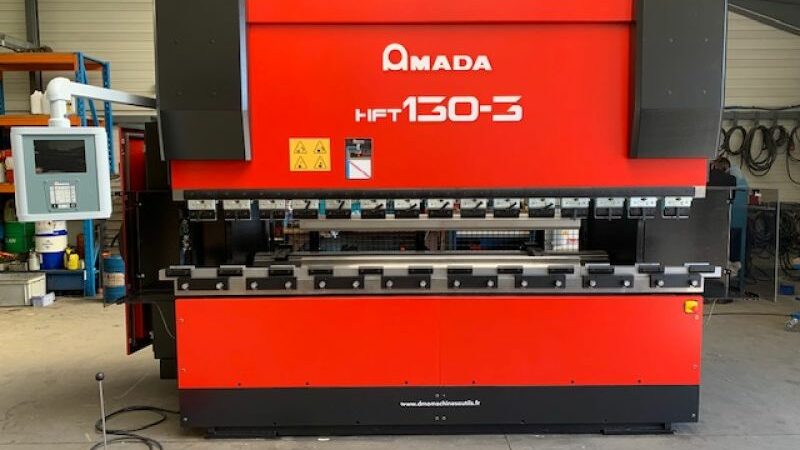

AMADA HFP 130-3 folding machine
- Power 130 Tons.
- Folding length: 3000 mm.
- Swan neck: 420 mm.
- Vertical travel: 350 mm.
- Tool store for specific bends and forming.
WELDING
- 7 TIG/MIG welding stations.

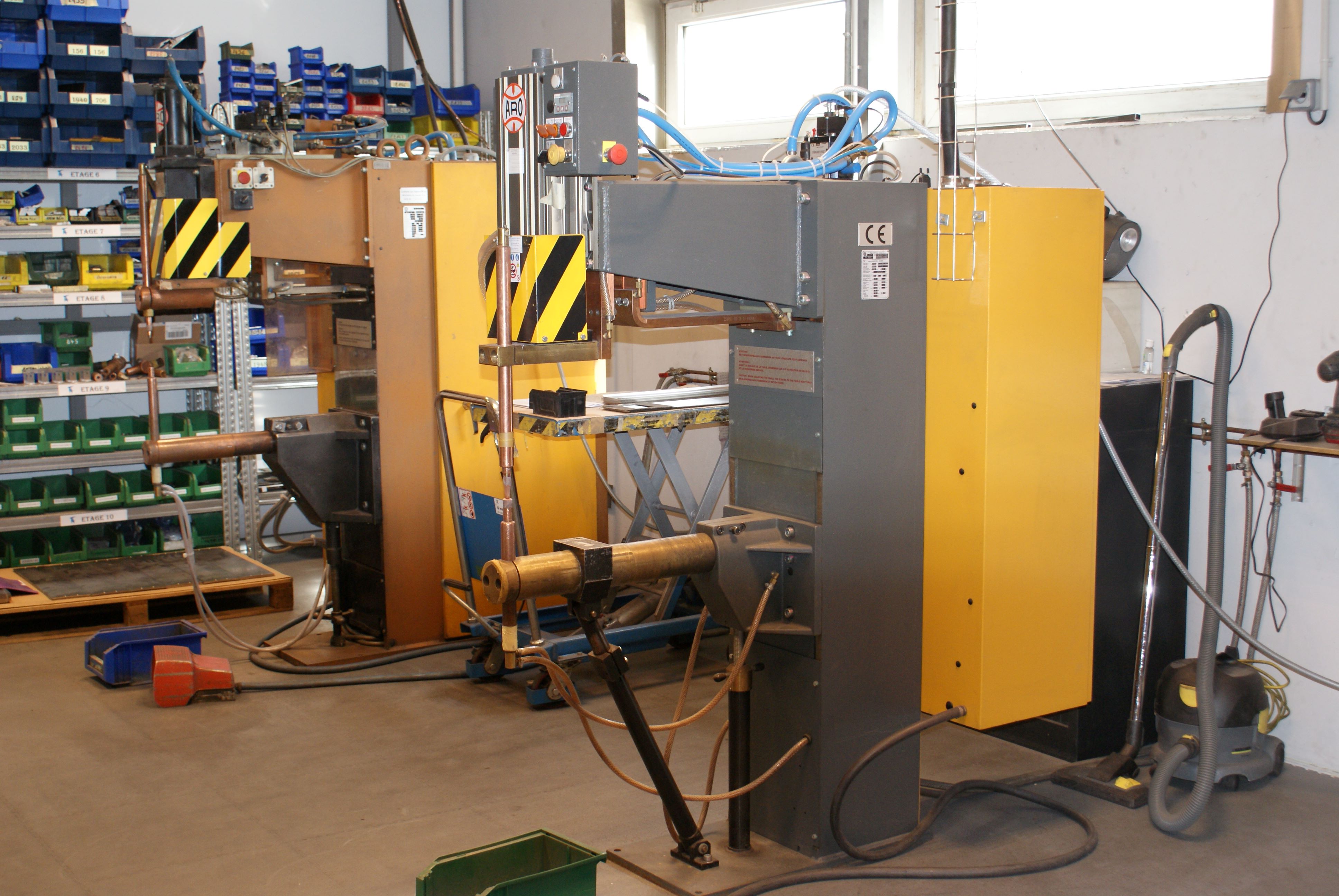

- 2 spot welding machines, 1 of which is direct current.

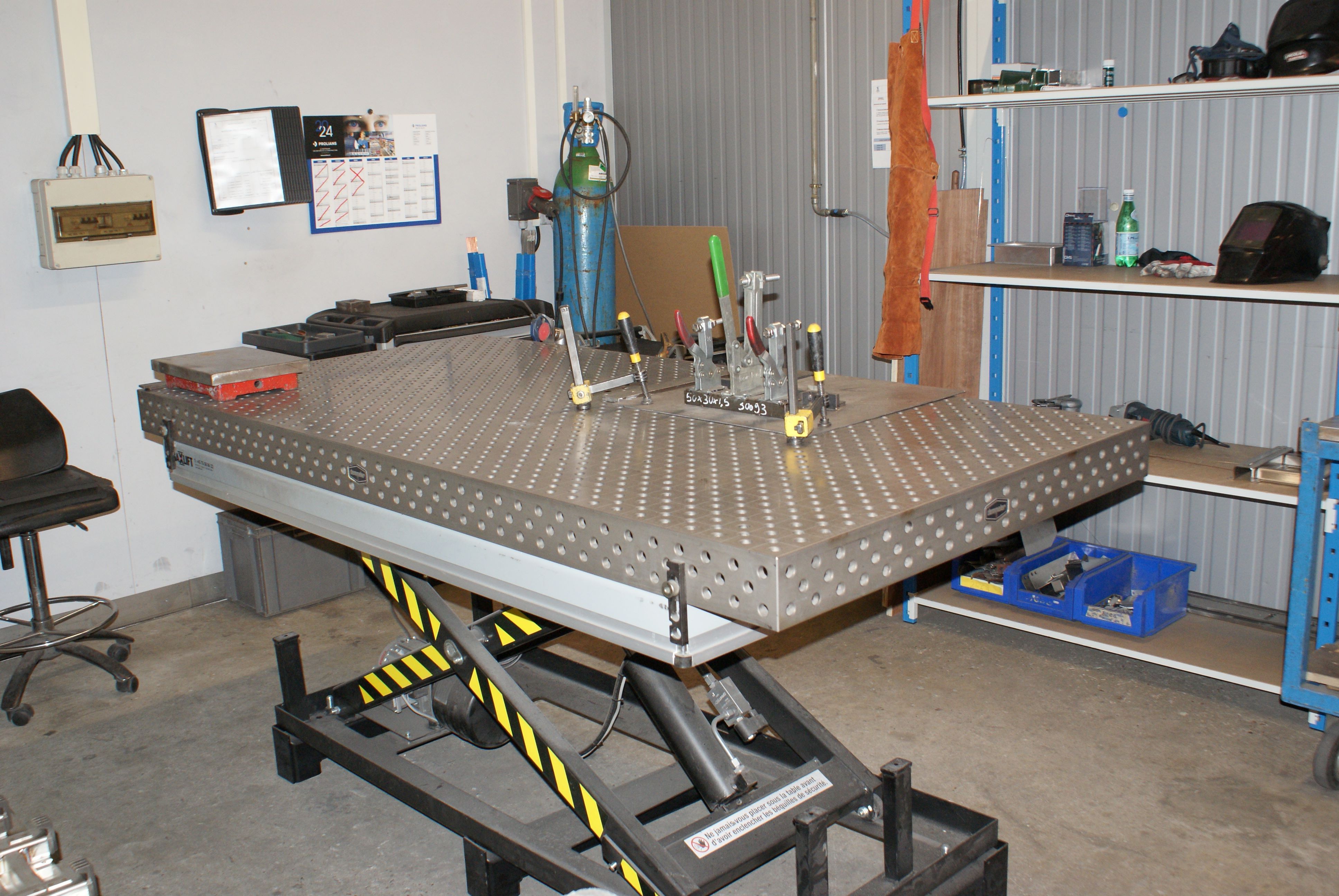

- Lifting tables.

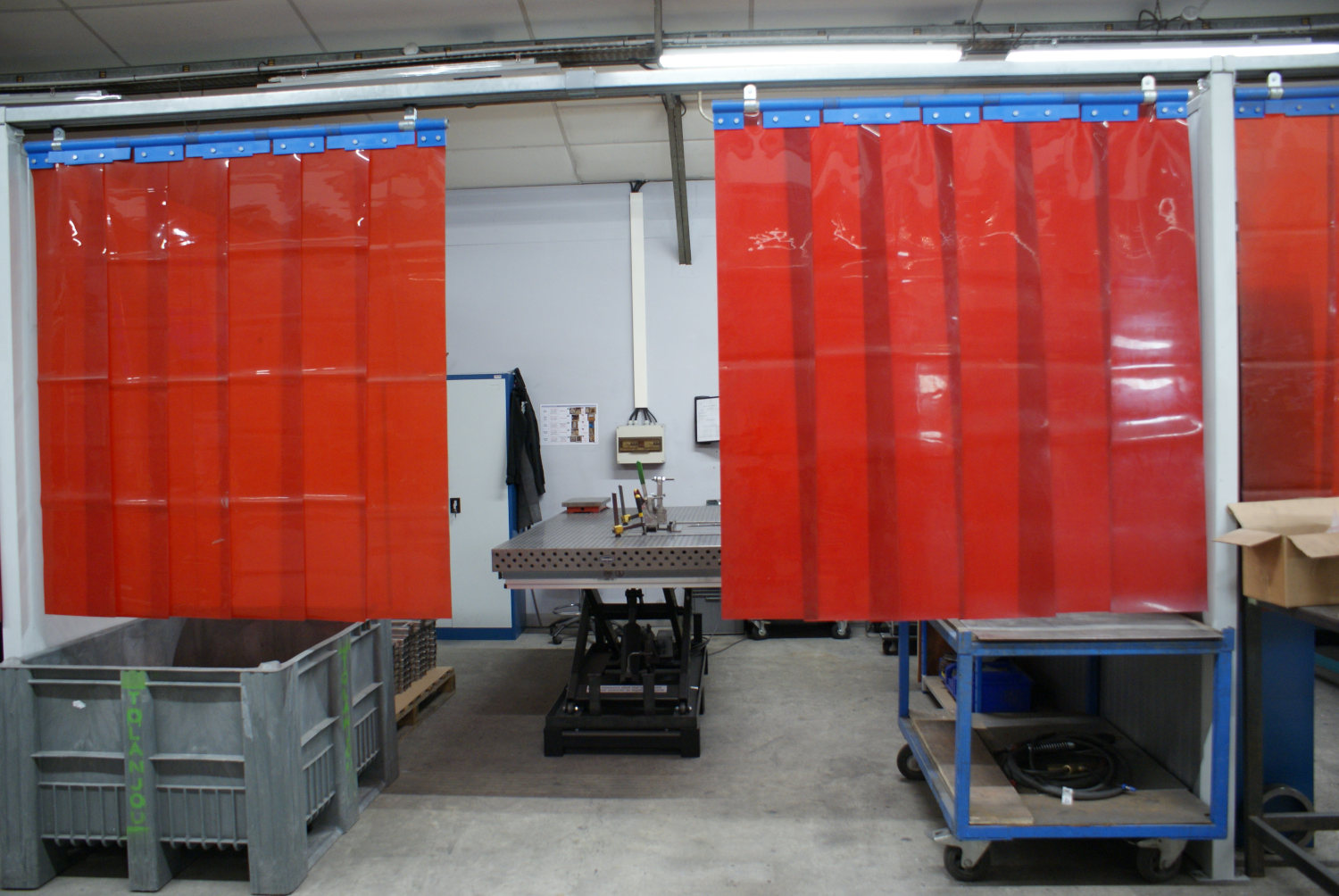

- Independent Boxes

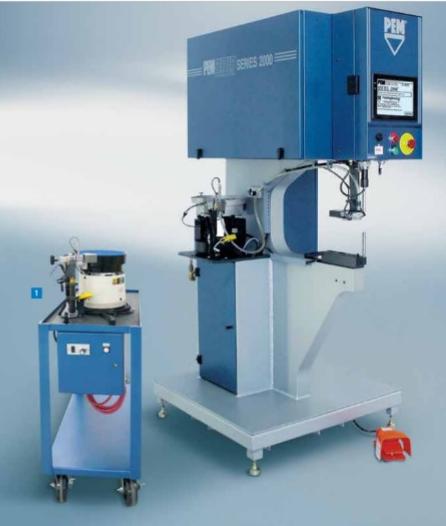

PEMSERTER 2000 Electric Crimper
- Patented opto-electronic security system.
- Force control: The press measures the effective force and compares it to the theoretical force.
- The electronic limitation of the return stroke and the variable installation time (0.25–2 seconds) make it possible to obtain a perfect crimping result, at an optimal rate.
- A precise system measures each stroke and compares the value obtained to the theoretical value set, before application of force.
- Vibrating Bowl.
- Automatic components.
- Flexibility and ease of use.
BRUSHING AND FINISHING
- BRUSHER with capacity of 1350 mm.
- Carousel to blunt the edges.
- 2 suction tables.
Quality commitment
Quality is at the heart of our approach. We are committed to providing products that meet the highest standards, ensuring durability and customer satisfaction. Our manufacturing processes include rigorous controls at each stage to ensure results that meet expectations.
We are ready to transform your ideas into concrete and sustainable solutions.
